Scuba dive balanced diaphragm 1st stage........................more

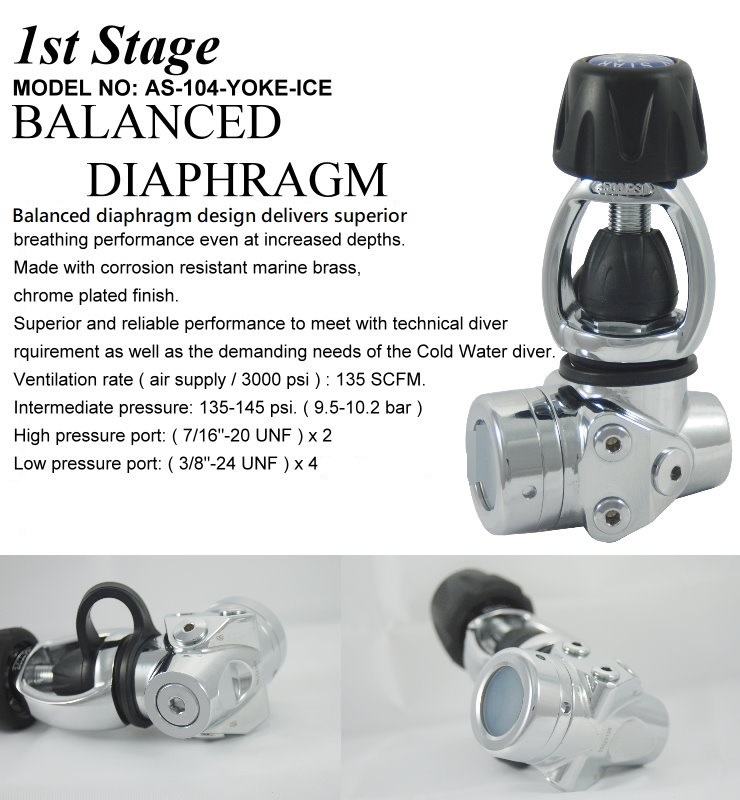

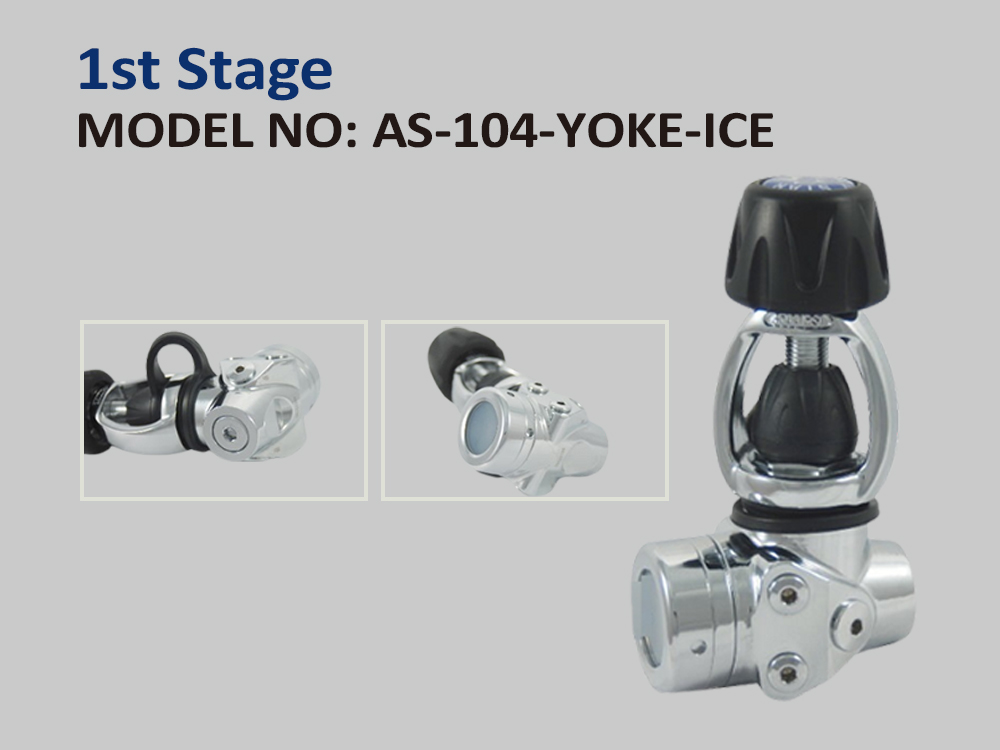

Ist Stage

MODEL NO: AS-104-YOKE-ICE

BALANCED DIAPHRAGM

Balanced diaphragm design delivers superior

breathing performance even at increased depths.

Made with corrosion resistant marine brass,

chrome plated finish.

Superior and reliable performance to meet with technical diver

rquirement as well as the demanding needs of the Cold Water diver.

Ventilation rate ( air supply / 3000 psi ) : 135 SCFM.

Intermediate pressure: 135-145 psi. ( 9.5-10.2 bar )

High pressure port: ( 7/16"-20 UNF ) x 2

Low pressure port: ( 3/8"-24 UNF ) x 4

Weight:990g
