AS-102-DIN

Request Sheet

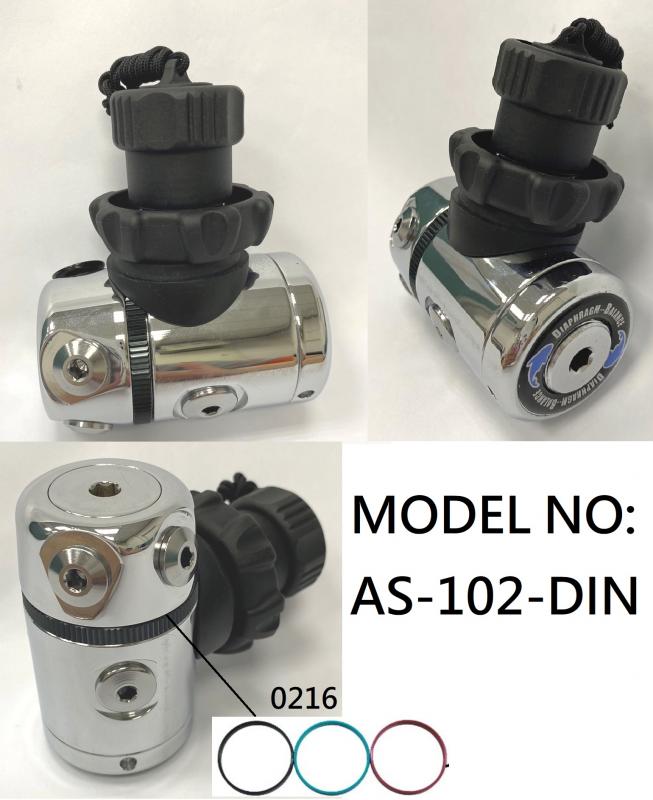

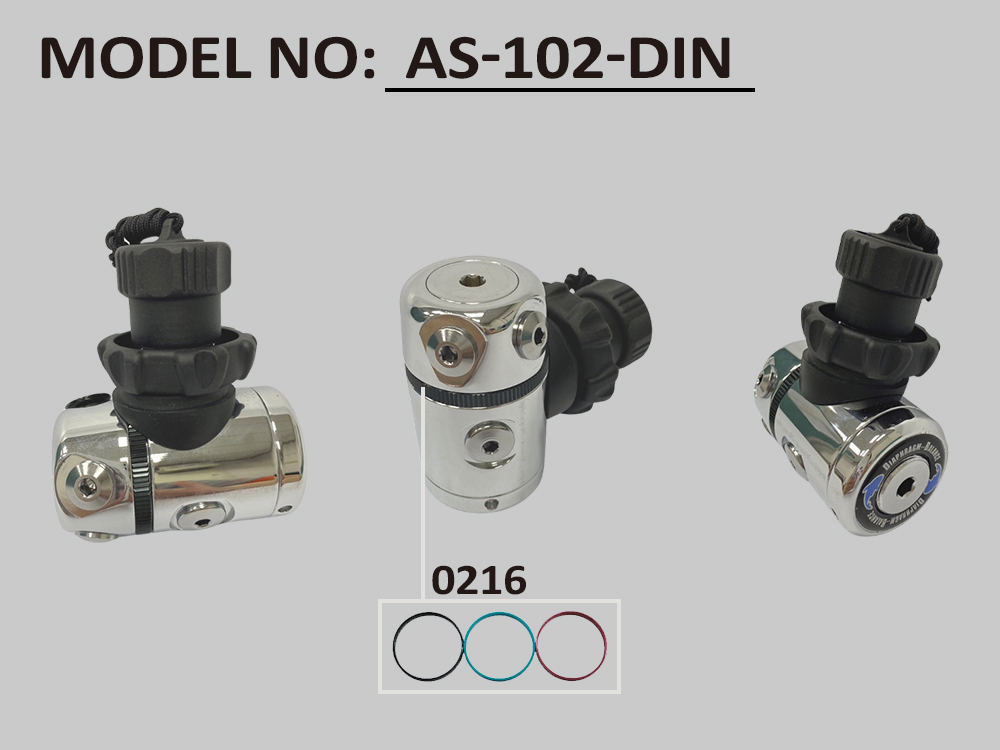

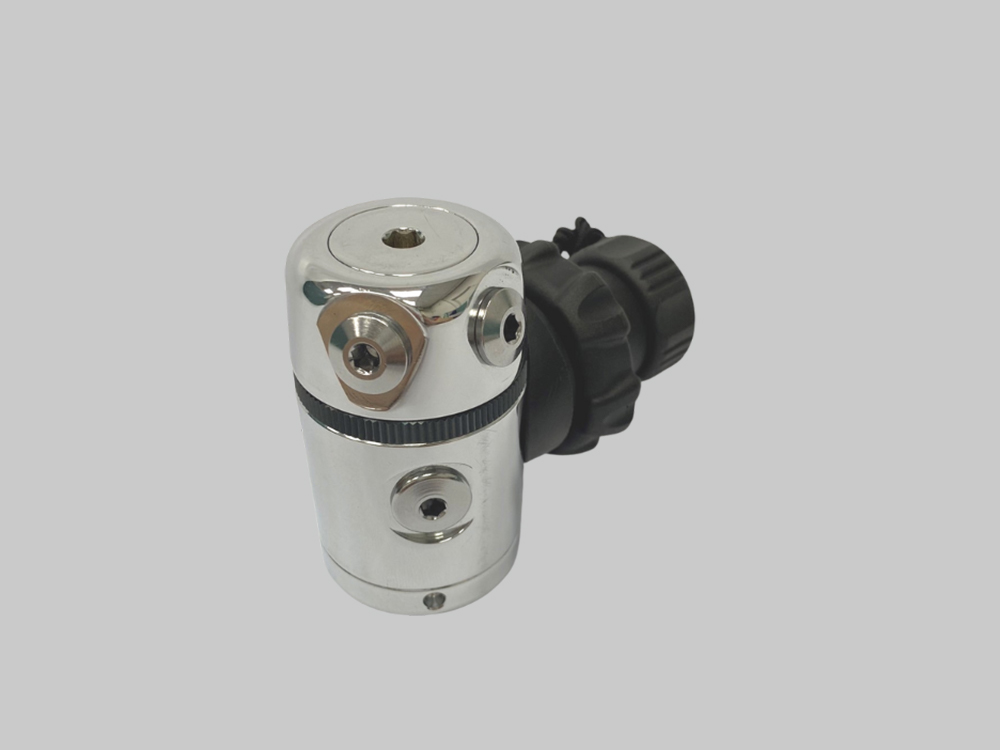

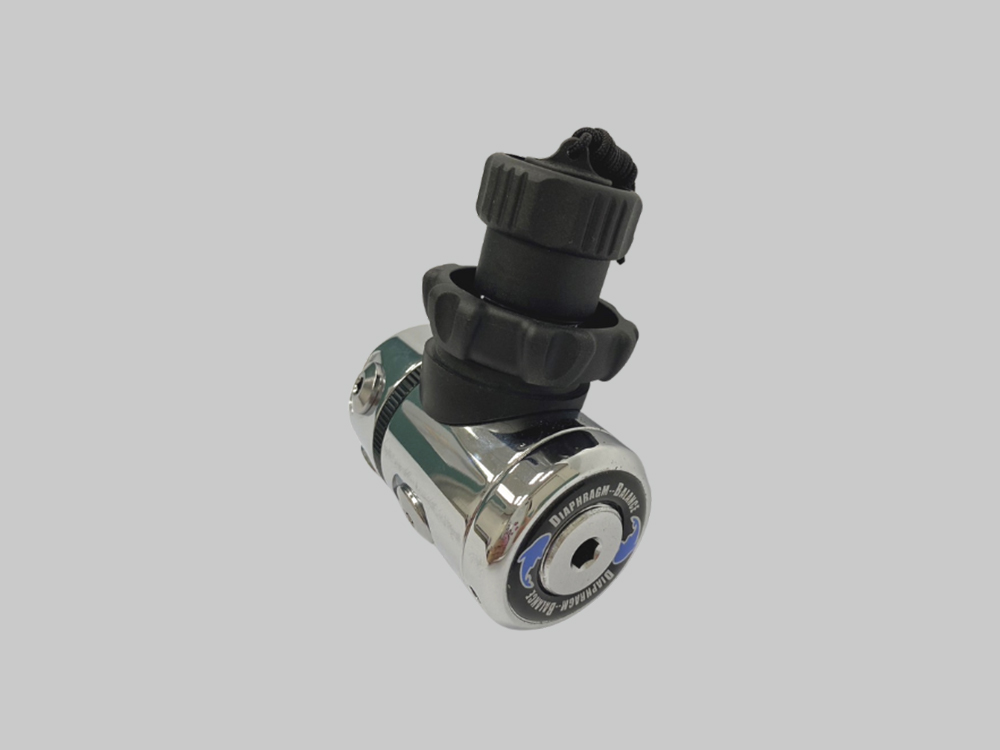

MODEL NO: AS-102-DIN
BALANCED DIAPHRAGM
Balanced diaphragm design delivers superior
breathing performance even at increased depths.
Made with corrosion resistant marine brass,
chrome plated finish.
Ventilation rate ( air supply / 3000 psi ) : 135 SCFM.
Intermediate pressure: 135-145 psi. ( 9.5-10.2 bar
High pressure port: ( 7/16"-20 UNF ) x 2
Low pressure port: ( 3/8"-24 UNF ) x 4 plus swiveling turret
Din.
